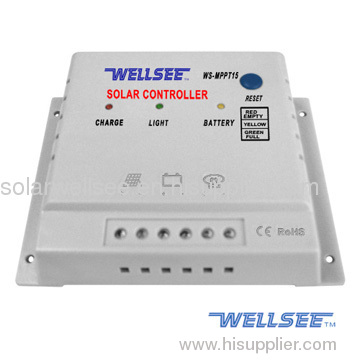

CE&ROHS WS-MPPT15 10A/15A 12V/24V/48V MPPT solar powercontroller
WS-MPPT15 15A solar power controller (also known as WELLSEE intelligent solarcharge controller, solar charge controller, PV controller) can intelligentlyregulate the working voltage of solar panels, letting the solar panels alwayswork at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPTcontroller can increase the efficiency of PV modules by 10%-30%.WELLSEE WS-MPPT solar power controllers 10A--60A include 12V series, 24V seriesand 48V series.
MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system is a system whichallows PV panels to outputs more Power by adjusting working condition of theelectrical module. In Figure1A indicates that the ordinarycontroller, which makes PV battery work on 12V ,only outputs a power point of53W (a general power point), B indicates that MPPT controller makes PV batteryalways work at the maximum power point, thus outputs the power point of 75W (themaximum power point).
Product features:
Applicable to various types of batteries,
MPPT function
Microprocessor controller pulse width modulation (PWM)charging
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration) ,
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection
We are special large scale R&D and manufactory enterprise of solar chargeand discharge controller and global supplier of Wellsee solar controller andphotovoltaic system equipment. We also have passed ISO9001, CE and RoHScertifications. Wuhan Wellsee products can be designed andproduced according to clients' special request. Welcome agents from everyarea!
MPPT principle:
The maximum power point is mainly affected by the ambient temperature and theintensity of sunshine. The intensity of sunshine being constant, the maximumoutput power decreases with the rise of the temperature. The temperature beingconstant, when the sunshine intensifies, the open circuit voltage of PV batterybasically keeps unchanged. But the short circuit current increasessubstantially, thus the maximum output power increases substantially.
This WS-MPPT solar controller can intelligently regulate the working voltageof solar panels, letting the solar panels always work at Maximum Power Point ofV-A curve. Compared with ordinary solar controller, this MPPT controller canincrease the efficiency of PV modules by about 30%.
However, due to many different factors, such as the difference in solar panelmaking, the change the Sun luminance, change in temperature, the efficiency ofthe controller etc., the actually available increased rate is 10%-30%.
TechnicalIndex:
Model | WS-MPPT15 10A | WS-MPPT15 15A |
Rated Voltage | 12V / 24V / 48V |
Max Load current | 10A | 15A |
Input voltage range | 12V~40V / 24V~80V / 48V~110V |
Length≤1m Charge loop drop | <0.25V |
Length≤1m Discharge loop drop | <0.05V |
Over voltage protection | 17V / 34V / 68V |
Full charge cut | 13.7V / 27.4V / 54.8V |
Low voltage cut | 10.5V~11V / 21V~22V / 42V~43V |
Temperature compensation | -3mv/°C/cell |
No load loss | ≤10mA |
Max wire area | 2.5 mm2 | 2.5mm2 |
Ambient temperature | -25°C——+55°C |
